| Delenummer : | EEE-FT1E330AR |
|---|---|
| Produsent / Merke : | Panasonic |

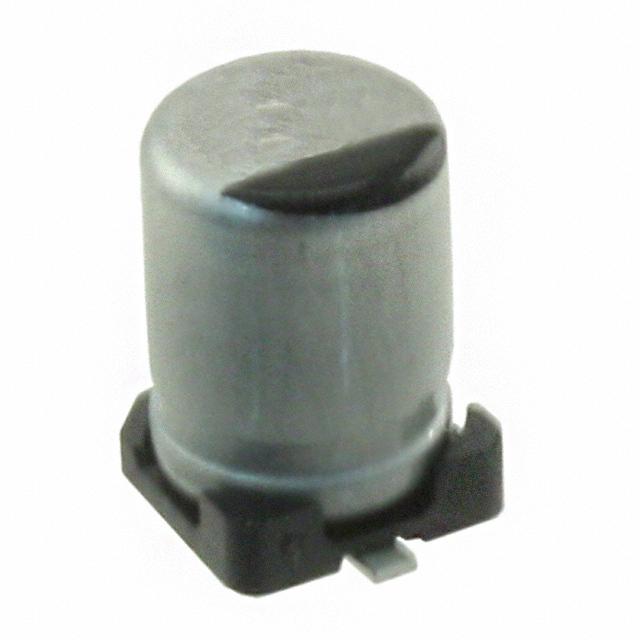

| Beskrivelse : | CAP ALUM 33UF 20% 25V SMD |
| RoHs Status : | Blyfri / RoHS-kompatibel |
| Antall tilgjengelige | 437064 pcs |
| Dataark | 1.EEE-FT1E330AR.pdf2.EEE-FT1E330AR.pdf3.EEE-FT1E330AR.pdf4.EEE-FT1E330AR.pdf5.EEE-FT1E330AR.pdf |
| Spenningsvurdering | 25V |
| Toleranse | ±20% |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Størrelse / Dimensjon | 0.157" Dia (4.00mm) |
| Serie | FT |
| Ripple Current @ Low Frequency | 104mA @ 120Hz |
| Ripple Current @ High Frequency | 160mA @ 100kHz |
| rangeringer | AEC-Q200 |
| polarisering | Polar |
| emballasje | Tape & Reel (TR) |
| Pakke / tilfelle | Radial, Can - SMD |
| Andre navn | EEEFT1E330AR PCE5004TR |
| Driftstemperatur | -55°C ~ 105°C |
| Monteringstype | Surface Mount |
| Vannfølsomhetsnivå (MSL) | 1 (Unlimited) |
| Produsentens Standard Lead Time | 19 Weeks |
| Levetid @ Temp. | 2000 Hrs @ 105°C |
| Lead Spacing | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Høyde - sittende (maks) | 0.240" (6.10mm) |
| ESR (ekvivalent serieresistens) | 850 mOhm @ 100kHz |
| Detaljert beskrivelse | 33µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 850 mOhm @ 100kHz 2000 Hrs @ 105°C |
| kapasitans | 33µF |
| applikasjoner | Automotive |
Panasonic
